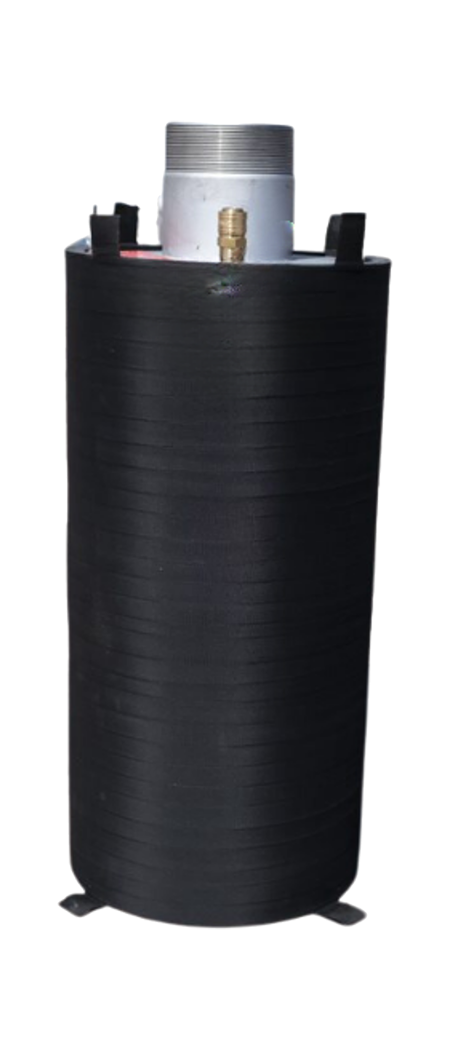

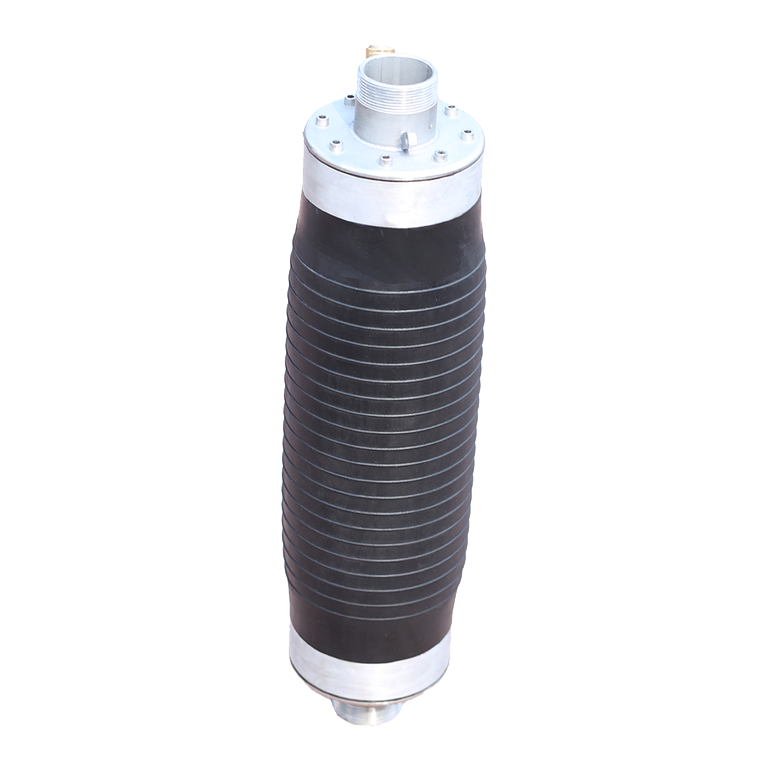

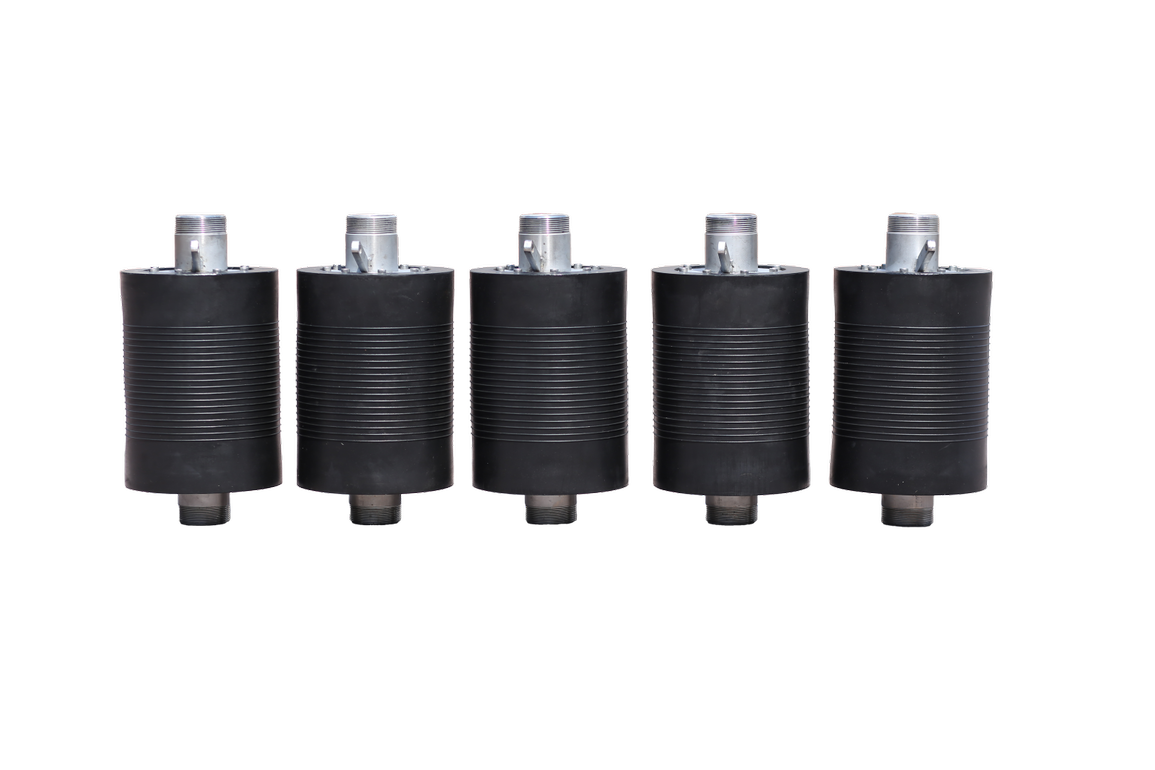

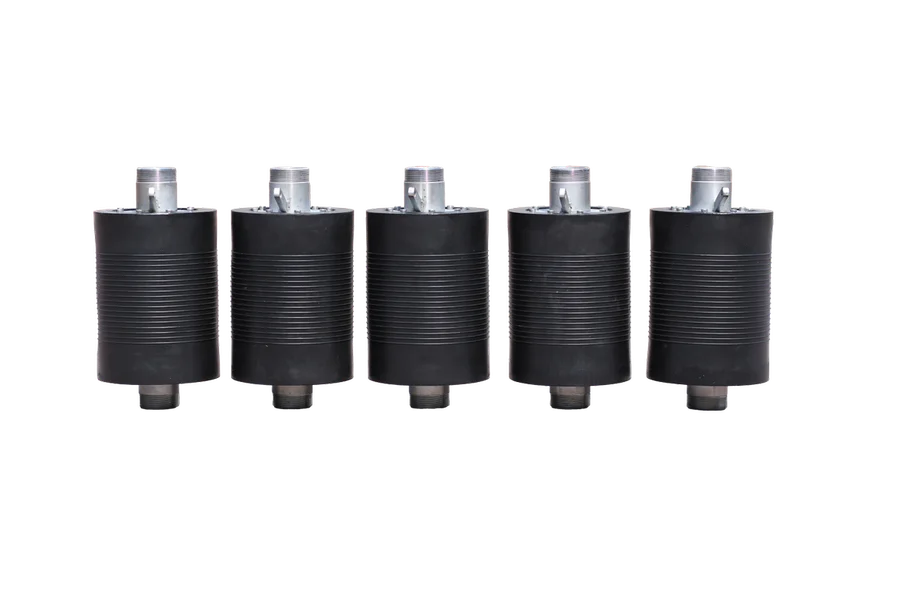

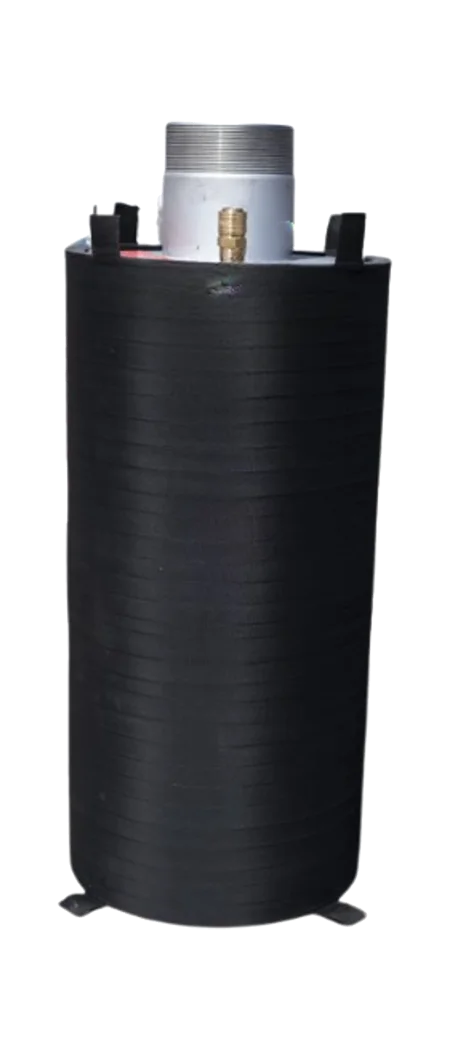

Inflatable Metal Core Bypass Stoppers are perfect for directing the flow in pipes and tanks of all sizes, allowing for maintenance and repair without the need to interrupt the flow. The rigid stainless steel core with rubber casing makes these stoppers ideal for high flow rates.
Features:
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight (kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
EBS100200 | 100 - 200 | 100mm/3,94" | 200mm/7,87" | 1,5bar/21,75psi | 92mm/3,62" | 400mm/15,75" | 50,80mm/2" | 4,5kg/9,92lbs |
|
|
EBS200500 | 200 - 500 | 200mm/7,87" | 500mm/19,69" | 1,5bar/21,75psi | 190mm/7,48" | 680mm/26,77" | 101,60mm/4" | 11,7kg/25,79lbs |
|
|
EBS300600 | 300 - 600 | 300mm/11,81" | 600mm/23,62" | 1,5bar/21,75psi | 280mm/11,02" | 680mm/26,77" | 101,60mm/4" | 22,0kg/48,5lbs |
|
|
EBS300750 | 300 - 750 | 300mm/11,81" | 750mm/29,53" | 1,5bar/21,75psi | 280mm/11,02" | 750mm/29,53" | 101,60mm/4" | 30,0kg/66,14lbs |
|
|
EBS500800 | 500 - 800 | 500mm/19,69" | 800mm/31,5" | 1,5bar/21,75psi | 440mm/17,32" | 680mm/26,77" | 152,40mm/6" | 38,0kg/83,78lbs |
|
|
EBS5001200 | 500 - 1200 | 500mm/19,69" | 1200mm/47,24" | 1,5bar/21,75psi | 440mm/17,32" | 930mm/36,61" | 203,20mm/8" | 50,0kg/110,23lbs |
